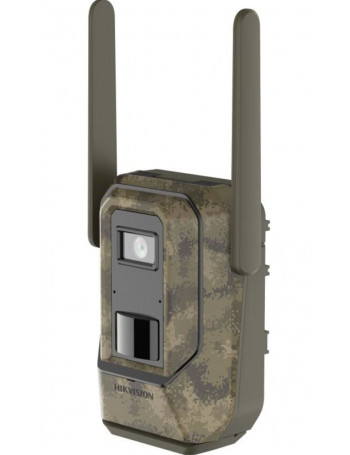

Hikvision DS-2XS6F45G1-IC2/4G(2.8mm)

Prekės Kodas: KIPDS2XS6F45G1IC24G

1 034,91 €

LP Express paštomatai

Gauk į paštomatą. Pristatysime Šeštadienį, Lapkričio 29 d.

DPD paštomatai

Gauk į paštomatą. Pristatysime Šeštadienį, Lapkričio 29 d.

Omniva paštomatai

Gauk į paštomatą. Pristatysime Šeštadienį, Lapkričio 29 d.

Venipak paštomatai

Gauk į paštomatą. Pristatysime Šeštadienį, Lapkričio 29 d.

Dėmesio! Pateikti pristatymo laikai yra preliminarūs ir gali kisti.

Galutinė pristatymo data bus nustatyta po užsakymo patvirtinimo.

Kamera
Sensorius1/3" Progressive Scan CMOS
Maks. rezoliucija2688 × 1520
Min. apšvietimasColor: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Užrakto greitis1 s to 1/100,000 s
Day & NightIR cut filter

Lęšis
Focal Length & FOV
2.8 mm, horizontal FOV 103.6°, vertical FOV 57.2°, diagonal FOV 121.6°
4 mm, horizontal FOV 81.1°, vertical FOV 48.6°, diagonal FOV 90.6°
DiafragamaF1.6
Lęšio montavimasM12

DORI
DORI
2.8 mm: D: 63.6 m, O: 25.2 m, R: 12.7 m, I: 6.4 m
4 mm: D: 66.0 m, O: 26.2 m, R: 13.2 m, I: 6.6 m

Vaizdas
Pagrindinis srautas
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Vaizdo suspaudimasMain stream: H.265
Vaizdo bitų greitis32 Kbps to 8 Mbps
H.265 tipasBaseline Profile,Main Profile,High Profile
Bitų greičio kontrolėCBR,VBR
Scalable Video Coding (SVC)H.265

Garsas
Pašalinių garsų šalinimasYes
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso tipasMono sound

Internetas
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP
ProtokolaiTCP/IP, IPv6, DDNS, RTSP, HTTPS, HTTP, FTP, QoS, Bonjour, SNMP, WebSocket, WebSockets
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
Vidinė atmintis
Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
KlientasiVMS-4200,Hik-Connect
Naršyklė
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Safari 13+, Edge 89+

Nuotrauka
Diena/Naktis režimasDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Nuotraukų pagražinimasBLC,HLC,Defog,3D DNR
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaiSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
SNR≥ 52 dB

Transducer
Transducer TypePIR
Fiksavimo diapazonasUp to 15 m
Fiksavimo kampas2.8 mm: Horizontal: 90° ± 5°, vertical: 25° ± 5°; 4 mm: Horizontal: 50° ± 5°, vertical: 20° ± 5°

Satellite Positioning
Satellite Positioning DetectionSupport GPS and searching longitude and latitude of the device

Sąsaja
Įmontuotas mikrofonas1 built-in microphone
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Interneto sąsaja1 six-core 1.25 mm interface (it can be transferred as 1 12 VDC coaxial interface and 1 RJ 45 10 m/100 m self-adaptive Ethernet port)
Perkrovimo mygtukas
Yes,
Press to switch between performance mode and proactive mode. Hold the button for 10 sec to restore to defaults.

Funkcijos
Pagrindinės funckcijosException,PIR Alarm
SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording

Pagrindinis
Sistemos parametrai6 to 15 VDC, 1.03 to 0.73 A, max. 6.2 W
Pagrindinės funkcijosHeartbeat,one-key reset,anti-banding,password protection,watermark, IP address filter
MedžiagaPlastic
DydisWith antennas folded: 172.8 mm × 139.7 mm × 86.7 mm (6.8" × 5.5" × 3.4"), with antennas extending: 283.3 mm × 139.7 mm × 86.7 mm (11.2" × 5.5" × 3.4")
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pakuotės dydis260 mm × 217 mm × 241 mm (10.2" × 8.5" × 9.5")
SvorisApprox. 0.63 kg (1.39 lb.)
Svoris su įpakavimuC1: approx. 1.588 kg (3.5 lb.), C2: approx. 1.848 kg (4.07 lb.)
Sandėliavimo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)

Baterija
Baterijos tipasChargeable lithium battery or 5AA dry cell
Battery Voltage
Rated voltage: 7.2 VDC
Charging voltage: 8.4 VDC
Discharging cut-off voltage: 5.6 VDC
Talpa9.4 Ah
Darbo sąlygos (temperatūra)-20 °C to 60°C (-4 °F to 140 °F)
Cycle Lifetime
Cycle lifetime is calculated under the condition that the camera captures pictures 10 times per day (9 times during the day and 1 time at night), uploads once per day, and keeps alive for 3 hours per day with the ambient temperature at 25 °C (77 °F).
Cycle lifetime: 125 days
Make sure the battery is fully charged before using the device.

Patvirtinimai
RFCE-RED: EN 301489-1 V2.2.3, EN 301489-17 V3.2.4, EN 301489-52 V1.2.1, EN 300 328 V2.2.2, EN IEC 62311:2020
EMC
CE-EMC: EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014,
RCM: AS/NZS CISPR 32: 2015
SaugumasCB: IEC 62368-1: 2014+A11
Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013
