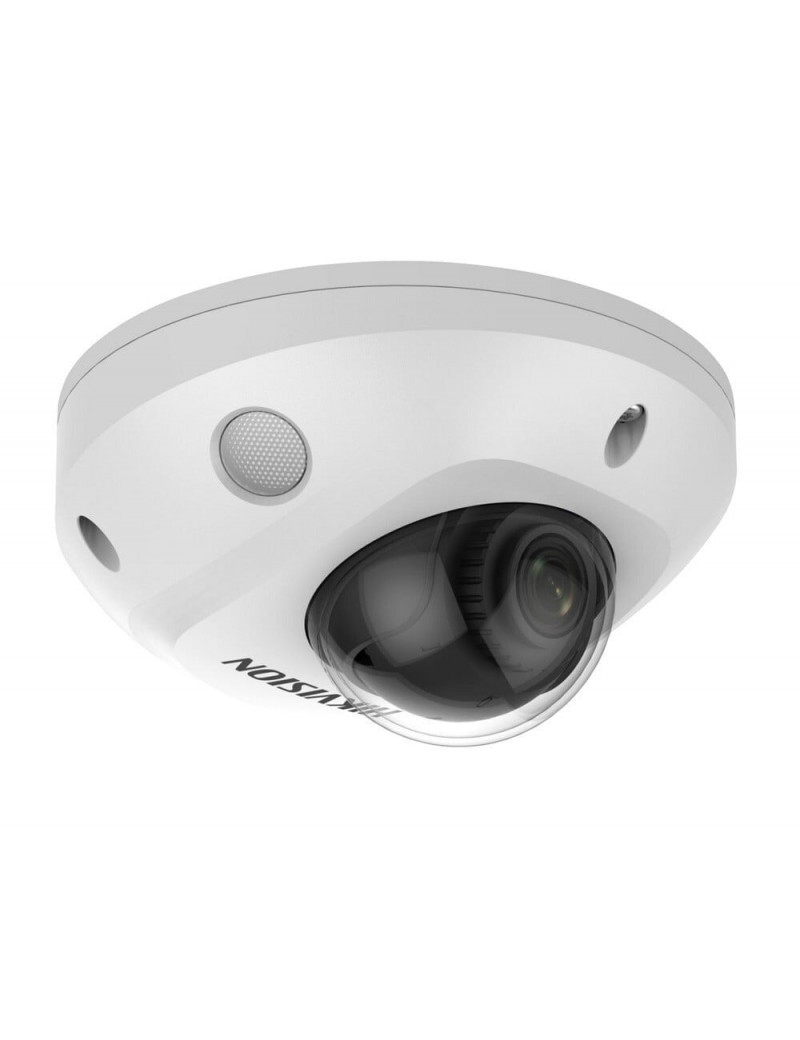

Hikvision mini dome DS-2CD2546G2-IWS F2.8 (balta, 4 MP, 30 m. IR, AcuSense)

Prekės Kodas: KIPDS2CD2546G2IWS

376,42 €

LP Express paštomatai

Gauk į paštomatą. Pristatysime Penktadienį, Lapkričio 28 d.

DPD paštomatai

Gauk į paštomatą. Pristatysime Penktadienį, Lapkričio 28 d.

Omniva paštomatai

Gauk į paštomatą. Pristatysime Penktadienį, Lapkričio 28 d.

Venipak paštomatai

Gauk į paštomatą. Pristatysime Penktadienį, Lapkričio 28 d.

Dėmesio! Pateikti pristatymo laikai yra preliminarūs ir gali kisti.

Galutinė pristatymo data bus nustatyta po užsakymo patvirtinimo.

Lęšis
Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
FOV
2.8 mm, horizontal FOV 102.7°, vertical FOV 55.2°, diagonal FOV 122.5°
4 mm, horizontal FOV 82.8°, vertical FOV 45.3°, diagonal FOV 97.7°
Lęšio montavimasM12
Rainelės tipasFixed
DiafragamaF1.4
Ryškumo gylis
2.8 mm: 1.6 m to ∞
4 mm: 2.1 m to ∞

Vaizdas
Pagrindinis srautas
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
Vaizdo suspaudimas
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Vaizdo bitų greitis32 Kbps to 8 Mbps
H.264 tipasBaseline Profile/Main Profile/High Profile
H.265 tipasMain Profile
Bitų greičio kontrolėCBR/VBR
SVCH.264 and H.265 encoding
ROI1 fixed region for main stream and sub-stream

Garsas
Garso tipas-IS/IWS: Mono sound
Garso suspaudimas-IS/IWS: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Garso bitų greitis-IS/IWS: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Garso atrankos dažnis-IS/IWS: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimas-IS/IWS: Yes

Internetas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1 (except for -W model), QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Vidinė atmintis
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported
KlientasiVMS-4200, Hik-Connect, Hik-Central
Naršyklė
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Wi-Fi
Šifravimo režimas-W: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Wi-Fi Protocol
-W:
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Dažnio diapazonas-W: 2.4 GHz to 2.4835 GHz
Kanalo dažnių juostos plotis-W: 20/40 MHz
Moduliacija
-W:
802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM
Transfer >reitingas
-W:
802.11b: 11 Mbps
802.11g: 54 Mbps
802.11n: up to 300 Mbps
Belaidžio ryšio diapazonas-W: Up to 80 m (The performance varies based on actual environment)

Nuotrauka
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaiRotate, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Diena/Naktis režimasDay, Night, Auto, Schedule
WDR120 dB
SNR≥ 52 dB
Nuotraukų pagražinimasBLC, HLC, 3D DNR

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD card, up to 256 GB
Įmontuotas mikrofonasYes
Garsas
-IS/IWS:
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija
-IS/IWS:
1 input, 1 output (max. 12 VDC, 20 mA)
Perkrovimo mygtukasYes

Funkcijos
Pagrindinės funckcijosMotion detection (human and vehicle targets classification), video tampering alarm, exception
Išmaniosios funkcijos
Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))
Scene change detection
SąsajaUpload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email

Pagrindinis
Sistemos parametrai
-IS:
12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W
-IWS:
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 7 W
MedžiagaBase: aluminum, cover: plastic
DydisØ110 mm × 57.4 mm (Ø 4.3" × 2.3")
Pakuotės dydis134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Approx. 380 g (0.8 lb.)
Svoris su įpakavimuApprox. 620 g (1.4 lb.)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Patvirtinimai
RF
-W:
FCC ID (FCC Part 15.247(BT or 2.4G));
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
EMC
FCC (47 CFR Part 15, Subpart B)
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RCM (AS/NZS CISPR 32: 2015)
IC (ICES-003: Issue 7)
KC (KN32: 2015, KN35: 2015)
Saugumas
UL (UL 62368-1)
CB (IEC 62368-1: 2014+A11)
CE-LVD (EN 62368-1: 2014/A11: 2017)
LOA (IEC/EN 60950-1)
Aplinkosauga
CE-RoHS (2011/65/EU)
WEEE (2012/19/EU)
Reach (Regulation (EC) No 1907/2006)
Apsauga
IP67 (IEC 60529-2013)
IK8 (IEC 62262:2002)
