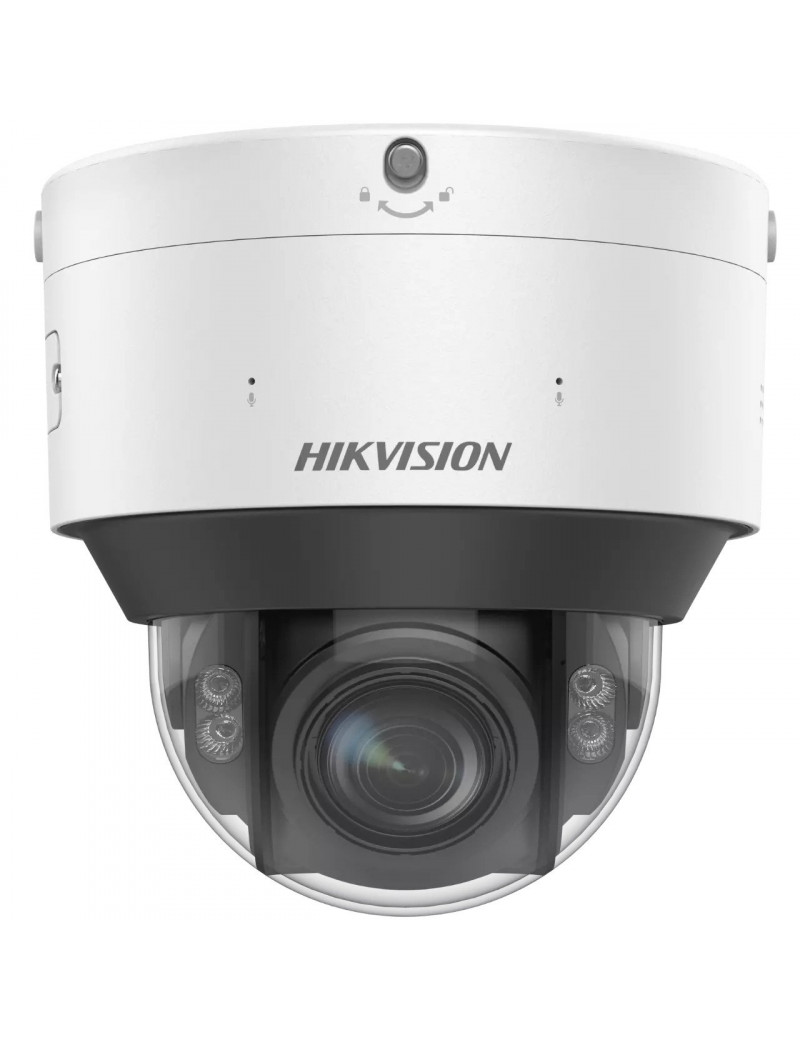

Hikvision dome iDS-2CD7547G0/P-XZHS F2.8-12

Prekės Kodas: KIPIDS2CD7547G0PXZH

1 376,74 €

LP Express paštomatai

Gauk į paštomatą. Pristatysime Penktadienį, Lapkričio 28 d.

DPD paštomatai

Gauk į paštomatą. Pristatysime Penktadienį, Lapkričio 28 d.

Omniva paštomatai

Gauk į paštomatą. Pristatysime Penktadienį, Lapkričio 28 d.

Venipak paštomatai

Gauk į paštomatą. Pristatysime Penktadienį, Lapkričio 28 d.

Dėmesio! Pateikti pristatymo laikai yra preliminarūs ir gali kisti.

Galutinė pristatymo data bus nustatyta po užsakymo patvirtinimo.

Aprašymas
Prekė detaliau

Kamera
Sensorius1/1.8" Progressive Scan CMOS
Maks. rezoliucija2688 × 1520
Min. apšvietimasColor: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light
Užrakto greitis1 s to 1/100,000 s
Day & Night
IR cut filter
Blue glass module to reduce ghost phenomenon
Kampo keitimasPan: 0° to 355°, tilt: 0° to 85°, rotate: 0° to 355°

Lęšis
Focal Length & FOV2.8 to 12 mm, horizontal FOV 104.2° to 44.1°, vertical FOV 55.3° to 24.8°, diagonal FOV 126.8° to 51.1°
FokusavimasAuto, semi-auto, manual
Rainelės tipasP-iris
DiafragamaF1.0 to F1.2

DORI
DORI
Wide: D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m
Tele: D: 140.7 m, O: 55.8 m, R: 28.1 m, I: 14.1 m

Apšvietimas
IR bangos ilgis850 nm
Išmanus papildomas apšvietimasYes
Papildomo apšvietimo diapazonas2.8 to 12 mm: 30 m
Papildomo apšviešimo tipasHybrid (IR and White Light)

Vaizdas
Pagrindinis srautas
50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Trečias srautas
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Ketvirtas srautas
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Penktasis srautas
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG,
Fifth stream: H.265/H.264/MJPEG
Vaizdo bitų greitis32 Kbps to 8 Mbps
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Bitų greičio kontrolėCBR,VBR
Tikslinis apkarpymasYes
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)4 fixed region(s) for each stream

Garsas
Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Garso tipasMono sound
Pašalinių garsų šalinimasYes

Internetas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
Tiesioginis vaizdo žiūrėjimasUp to 20 channels
APIONVIF, ISAPI, SDK, ISUP
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
KlientasiVMS-4200, Hik-Connect
Naršyklė
Plug-in required live view: IE 10, IE11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Nuotrauka
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaiSaturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
Diena/Naktis režimasDay,Night,Auto,Schedule,Alarm Trigger,Video Trigger
Wide Dynamic Range (WDR)140 dB
Privatumo kaukė8 programmable polygon privacy masks, mask color or mosaic configurable
SNR≥ 52 dB
Nuotraukų pagražinimasBLC,HLC,3D DNR,Defog, EIS
Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Sąsaja
Vaizdo išvestis1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Garsas
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Įmontuotas mikrofonasYes, 2 built-in microphones
Signalizacija1 input, 1 output (max. 24 VDC, 1 A)
Įmontuotas garsiakalbisMax. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m
RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Perkrovimo mygtukasYes
Galia12 VDC, max. 100 mA
Wiegand1 Wiegand (CardID 26bit,SHA-1 26bit,Hik 34bit, NEWG 72 bit)

Funkcijos
Pagrindinės funckcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection
Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
SąsajaUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning

Išmaniosios funkcijos
Meta duomenysIntrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
Kelių eismo ir transporto priemonių aptikimas
Blocklist and allowlist: up to 10000 records
Support license plate recognition of motorcycles (only in checkpoint scenario)
Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.)
License plate recognition rate ≥98%

Pagrindinis
Sistemos parametrai
12 VDC ± 20%, 2.01 A, max. 24.01 W, three-core terminal block;
24 VAC ± 20%, 1.51 A, max. 24.01 W, three-core terminal block;
PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.60 A to 0.44 A, max. 25.43 W
MedžiagaAluminum alloy body
DydisØ160 × 159.5 mm (Ø6.3" × 6.3")
Pakuotės dydis251 × 215 × 189 mm (9.9" × 8.5" × 7.4")
SvorisApprox. 2100 g (4.62 lb.)
Svoris su įpakavimuApprox. 2850 g (6.28 lb.)
Darbo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijosHeartbeat,anti-banding,one-key reset,mirror,password protection,privacy mask, watermark, IP address filter, flash log, control timeout
ŠildytuvasYes
Rasos šalinimasYes

Patvirtinimai
EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Saugumas
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
LOA: IEC/EN 60950-1
Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
Apsauga nuo korozijos-Y model: NEMA 4X (NEMA 250-2018)
AutomatikaEN50121-4
KitaPVC FREE
