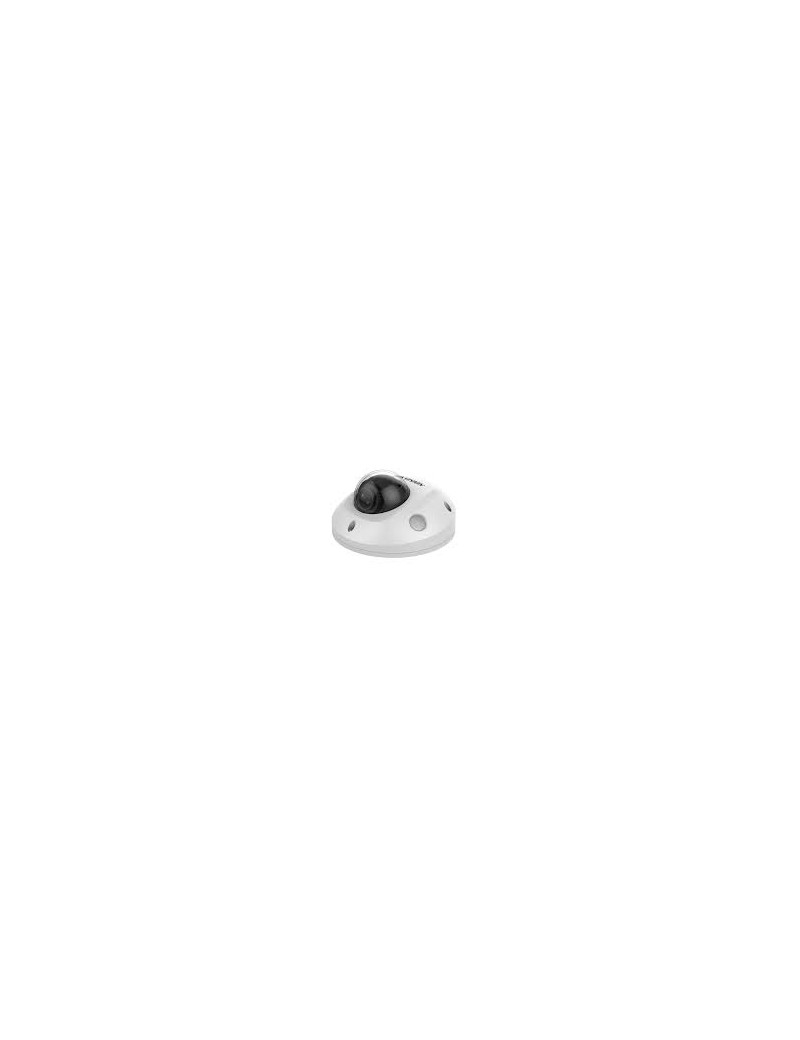

Hikvision mobile dome DS-2XM6756G1-IM/ND F2.0

Prekės Kodas: KIP2XM6756G1IMND20

568,10 €

LP Express paštomatai

Gauk į paštomatą. Pristatysime Antradienį, Gruodžio 16 d.

DPD paštomatai

Gauk į paštomatą. Pristatysime Antradienį, Gruodžio 16 d.

Omniva paštomatai

Gauk į paštomatą. Pristatysime Antradienį, Gruodžio 16 d.

Venipak paštomatai

Gauk į paštomatą. Pristatysime Antradienį, Gruodžio 16 d.

Dėmesio! Pateikti pristatymo laikai yra preliminarūs ir gali kisti.

Galutinė pristatymo data bus nustatyta po užsakymo patvirtinimo.

Kamera
Užrakto greitis1/3 s to 1/100,000 s
P/N
PAL: 25fps
NTSC: 30fps （30fps is not supported under 2560 × 1920 main code stream）
Day & NightIR Cut Filter
Kampo keitimasPan:-30°~+30°, Tilt: 0°~75°, Rotate: 0°~ 360°
Baltos spalvos balansas
Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light;
Support manual/automatic white balance adjustment.

Lęšis
FOV2mm/2.8mm/4mm
Focal Length & FOV
2 mm, horizontal FOV 122°, vertical FOV 93°, diagonal FOV 152°
2.8 mm, horizontal FOV 95°, vertical FOV 69°, diagonal FOV 126°
4 mm, horizontal FOV 78°, vertical FOV 55°, diagonal FOV 105°
Lęšio montavimasM12
FokusavimasManual focus
Max. Aperture
2mm:F2.25
2.8 /4mm: F1.6

Vaizdas
Maks. rezoliucija2560 × 1920
Pagrindinis srautas
Third Stream ON:
50Hz: 25 fps (2560 × 1920, 1920 × 1080, 1280 x 960, 1280 × 720)
60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream OFF:
50Hz: 25 fps (2560 × 1920, 1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30 fps (2560 × 1920, 1920 × 1080, 1280 × 960, 1280 × 720)
Antrinis srautas
Third Stream ON:
50Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 30 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
Third Stream OFF:
50Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 30 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
Trečias srautas
Third Stream ON:
50Hz: 25 fps (1280 × 720)
60Hz: 30 fps (1280 × 720)
Third Stream OFF:
50Hz: 25 fps (0)
60Hz: 30 fps (0)
Vaizdo suspaudimas
Main stream: H.264, H.265, H.264+, H.265+
Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+
Third stream: H.264, H.265 ,H.264+, H.265+
Vaizdo bitų greitis
Main Stream: 512 Kbps to 16384Kbps
Sub-Stream: 256 Kbps to 4096Kbps
Third Stream: 512 Kbps to 6144Kbps
H.264 tipasMain Profile/High Profile
H.265 tipasMain Profile
Bitų greičio kontrolėConstant Bit Rate, Variable Bit Rate
Srauto tipasMain stream, sub stream, third stream
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region Of Interest (ROI)Support 2 fixed region for (main/sub) stream

Internetas
ProtokolaiTCP/IP, HTTP, HTTPS, DHCP, DNS, DDNS , RTSP, SNMP, QOS, ISUP5.0, ISUP2.0
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User ManagementUp to 16users, 3 levels: Administrator, Operator and User
NaršyklėIE8+, Chrome45+, Edge41+, Firefox45+

Nuotrauka
Wide Dynamic Range (WDR)120 dB
Nuotraukos nustatymaiSupport rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.
Diena/Naktis režimasDay/Night/Auto/Schedule
SNR> 50 dB
Nuotraukų pagražinimasBLC, HLC, 3D DNR
Privatumo kaukėEnables configuration, and supports drawing of up to 4 areas
Nuotraukos perdangaSupport image overlay, uploading images, enabling, coordinates, etc.
Tikslinis apkarpymasSupport (only the third stream)
Backlight Compensation(BLC)Support up, down, left, right, center and custom backlight compensation adjustment

Sąsaja
Vaizdo išvestisNot supported
Interneto sąsaja
-ID: 1 RJ45 10M/100M self-adaptive Ethernet port
-IM/ND, IDM: 1 four-core M12 aviation plug
SD Card StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Garsas1 built-in mic, mono sound
Perkrovimo mygtukasSupport
Interface TypeInterpolate

Funkcijos
Susiejimo metodasUpload to FTP, notify monitoring center, send email, trigger recording
Pagrindinės funckcijosMotion detection, video tampering alarm
Išmaniosios funkcijos
Line crossing detection,
Intrusion detection,
Region entrance detection,
Region exiting detection,
Unattended baggage detection,
Object removal detection,
Object detection: detects faces and upload images
Scene change detection, defocus detection

Pagrindinis
Produkto matmenysCamera: Φ 110 mm × 57.4 mm (4.3" × 2.26")
Sistemos parametrai
PoE:0.30 A to 0.20 A, max: 7.5W
DC: 0.83A to 0.21A,max:7.5W
Pakuotės dydis252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7")
Produkto svorisApprox. 452 g (1 lb.)
Darbo sąlygos-30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
KalbaEnglish, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
Pagrindinės funkcijosAnti-flicker, heartbeat, mirror
Programinės įrangos nustatymas iš naujoSupport
Maitinimas
-ID: 9-36V& PoE (802.3af, 36 V to 57 V)
-IDM: 9-36V& PoE (802.3af, 36 V to 57 V)
-IM/ND: PoE (802.3af, 36 V to 57 V)
Maitinimas
-ID: Ø 5.5 mm coaxial power plug, DC power supply, or PoE power supply
-IM/ND: 4-core M12 aviation plug, PoE power supply
Cable Length50 cm

Patvirtinimai
ClassClass B
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
SaugumasUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
AplinkosaugaCE-RoHS (2011/65/EU);
Electrical Safety ProtectionIK10(IEC 62262:2002)
AutomatikaEN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
