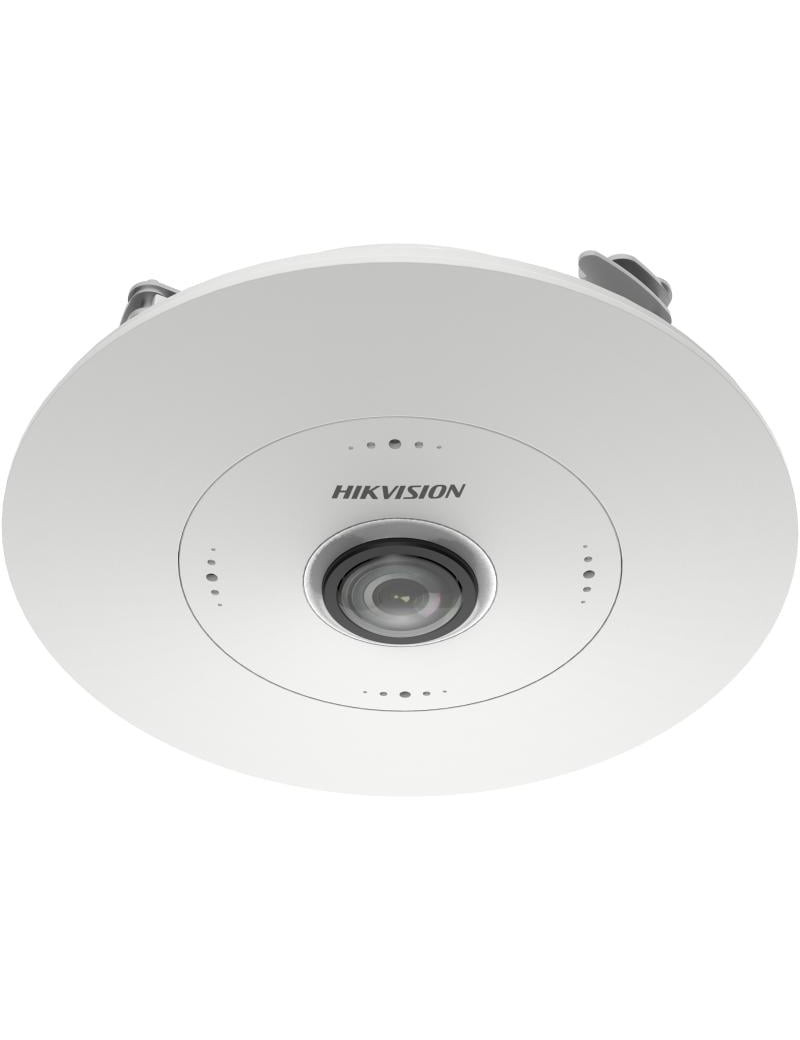

Hikvision fisheye DS-2CD63C5G1-S/RC F1.29

Prekės Kodas: KIP2CD63C5G1SRCF129

1 162,73 €

LP Express paštomatai

Gauk į paštomatą. Pristatysime Penktadienį, Lapkričio 28 d.

DPD paštomatai

Gauk į paštomatą. Pristatysime Penktadienį, Lapkričio 28 d.

Omniva paštomatai

Gauk į paštomatą. Pristatysime Penktadienį, Lapkričio 28 d.

Venipak paštomatai

Gauk į paštomatą. Pristatysime Penktadienį, Lapkričio 28 d.

Dėmesio! Pateikti pristatymo laikai yra preliminarūs ir gali kisti.

Galutinė pristatymo data bus nustatyta po užsakymo patvirtinimo.

Aprašymas
Prekė detaliau

Kamera
Sensorius1/1.8" Progressive Scan CMOS
Maks. rezoliucija3504 × 3504
Min. apšvietimasColor: 0.03 Lux @ (F2.2, AGC ON),B/W: 0.006 Lux @ (F2.2, AGC ON)
Užrakto greitis1 s to 1/100,000 s
Day & NightIR cut filter

Lęšis
Lęšio tipasFixed focal lens, 1.29 mm
Focal Length & FOV1.29 mm, horizontal FOV 180°, vertical FOV 180°
Rainelės tipasFixed
DiafragamaF2.2
Ryškumo gylis0.2 m to ∞

DORI
DORI
D: 27.9 m
O: 11.1 m
R: 5.6 m
I: 2.8 m

HEOP
Atviri ištekliai
Memory: 60 MB,
Smart RAM: 800 MB,
eMMC: 2 GB
Kompiuterinė galia2 TOPS
SDKHEOP 2.0 OpendevSDK
Giluminio mokymosi struktūraCaffe,TensorFlow,PyTorch
Programavimo kalbaC,C++

Vaizdas
Pagrindinis srautas
50 Hz: 25 fps/60 Hz: 30 fps:
Fisheye View:
3504 × 3504, 3024 × 3024, 2560 × 2560, 2048 × 2048
180 Panorama View:
3072 × 2304, 2048 × 1536
180 Dual Channel Panorama View:
3072 × 1152
Panorama View:
3072 × 2304, 2048 × 1536
4PTZ View:
camera 01/camera 02/camera 03/camera 04: 1600 × 1200
Fisheye + 3PTZ View:
camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280
camera 02/camera 03/camera 04: 1600 × 1200
4PTZ Fusion View:
3200 × 2400, 2048 × 1536
Antrinis srautas
50 Hz: 25 fps/60 Hz: 30 fps:
Fisheye View:
720 × 720, 480 × 480
180 Panorama View:
640 × 480, 320 × 240
180 Dual Channel Panorama View:
640 × 480, 320 × 240
Panorama View:
640 × 360, 320 × 240
4PTZ View:
camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240
Fisheye + 3PTZ View:
camera 01: 720 × 720
camera 02/camera 03/camera 04: 640 × 480, 320 × 240
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/ H.264,
Sub-stream: H.265/H.264/MJPEG
Vaizdo bitų greitis32 Kbps to 16 Mbps
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Bitų greičio kontrolėCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)4 fixed regions for each stream

Fisheye rodymas
Montavimo tipasSupport wall/table/ceiling mounting
Dekodavimo režimasSupport hardware decoding and software decoding
Rodymo rėžimas
20 display modes in total,
Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder,
Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Garsas
Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
Pašalinių garsų šalinimasYes

Internetas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
Tiesioginis vaizdo žiūrėjimasUp to 20 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP,
Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
KlientasiVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
Naršyklė
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Nuotrauka
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaisaturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Diena/Naktis režimasDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)Digital WDR
Nuotraukų pagražinimasBLC,HLC,3D DNR,Distortion Correction,Defog
Privatumo kaukė8 programmable polygon privacy masks
Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Įmontuotas mikrofonasYes, 4 built-in microphones
Garsas
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija2 inputs, 2 outputs (max. 24 VDC, 1 A)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Perkrovimo mygtukas1 Reset Key

Funkcijos
Pagrindinės funckcijosMotion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Išmaniosios funkcijos
Žmonių skaičiavimas
Counts people entering, exiting and passing by separately (The data is stored in the flash.)
Supports real-time uploading and uploading by statistic cycle
Sends email reports on daily, weekly, monthly or annually basis
Supports up to 3 detection regions, and independent arming schedule and linkage method
Eilių valdymas
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold
Heat Map
A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.,
Two report types are available, space heat map and time heat map line chart.
Sankryžų analizė
Detects and analyze flow in an intersection-like scene, and generate reports
Support one intersection of up to 10 ways

Pagrindinis
Sistemos parametrai
12 VDC ± 20%, 0.6 A, max. 7 W,two-core terminal block,
PoE: IEEE 802.3af, Class 3, max. 8 W
MedžiagaMetal
DydisØ165.0 mm × 48.9 mm (Ø6.49" × 1.93")
Pakuotės dydis272 mm × 215 mm × 105 mm (10.7" × 8.5" × 4.1")
SvorisApprox. 470 g (1.04 lb.)
Svoris su įpakavimuApprox. 884 g (1.95 lb.)
Sandėliavimo sąlygos-10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-10 °C to 40 °C (-10 °F to 104 °F). Humidity 95% or less (non-condensing)
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijosHeartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding
Kabelio ilgis0.31 m (1.02 ft.)

Patvirtinimai
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
Saugumas
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
