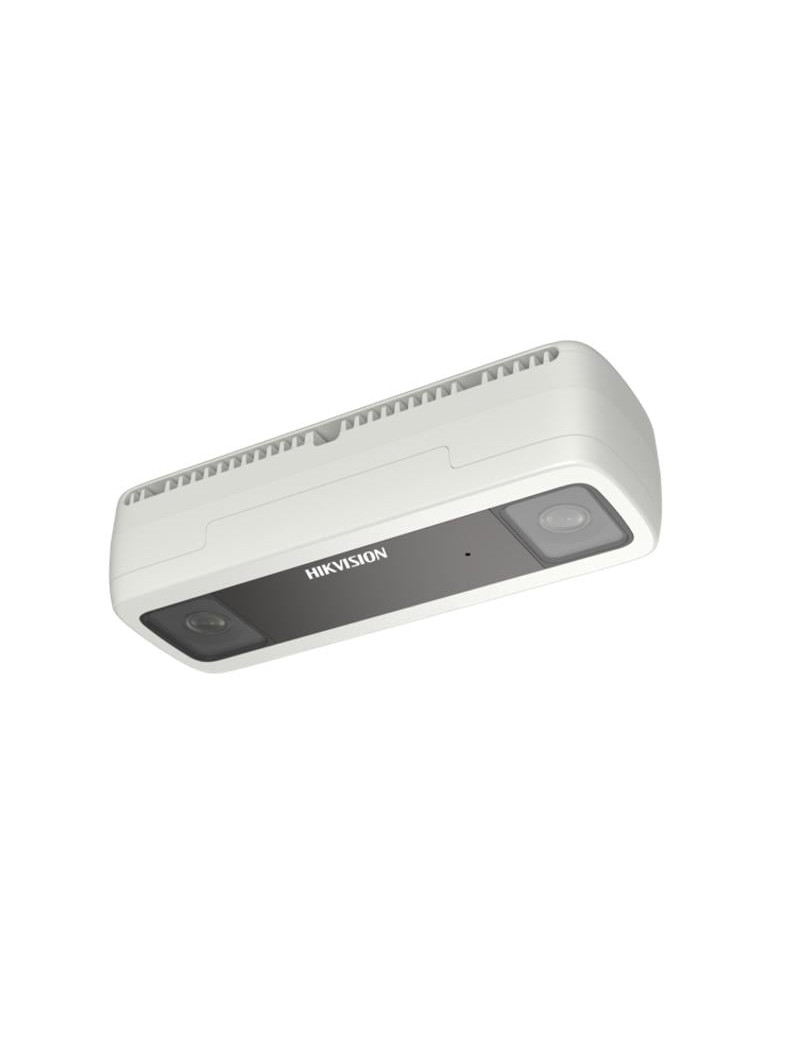

Hikvision DS-2CD6825G0/C-IVS(B) F2

Prekės Kodas: KIPS2CD6825G0CIVSBF2

1 784,17 €

LP Express paštomatai

Gauk į paštomatą. Pristatysime Ketvirtadienį, Rugpjūčio 7 d.

DPD paštomatai

Gauk į paštomatą. Pristatysime Ketvirtadienį, Rugpjūčio 7 d.

Omniva paštomatai

Gauk į paštomatą. Pristatysime Ketvirtadienį, Rugpjūčio 7 d.

Venipak paštomatai

Gauk į paštomatą. Pristatysime Ketvirtadienį, Rugpjūčio 7 d.

Dėmesio! Pateikti pristatymo laikai yra preliminarūs ir gali kisti.

Galutinė pristatymo data bus nustatyta po užsakymo patvirtinimo.

Kamera
Sensorius1/2.7" Progressive Scan CMOS
Maks. rezoliucija2560 × 1440
Min. apšvietimasColor: 0.0176 Lux @ (F2.25, AGC ON),B/W: 0.0035 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
Užrakto greitis1/25 s to 1/100,000 s
Day & NightIR cut filter

Lęšis
Lęšio tipasFixed focal lens, 2 mm
Focal Length & FOV2 mm, horizontal FOV 104.5°, vertical FOV 70.5°, diagonal FOV 112°
Lęšio montavimasM12
DiafragamaF2.25

Vaizdas
Pagrindinis srautas
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Antrinis srautas
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
Vaizdo bitų greitis32 Kbps to 8 Mbps
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)4 fixed region(s) for main stream and sub-stream

Garsas
Garso tipas-S: Mono sound
Garso suspaudimas-S: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis-S: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis-S: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimas-S: Yes

Internetas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Tiesioginis vaizdo žiūrėjimasUp to 20 channels
APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK
User/Host
Up to 32 users
3 user levels: administrator, operator, and user
SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address)
KlientasiVMS-4200,Hik-Connect
Naršyklė
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
Local service: Chrome 57.0+, Firefox 52.0+, Safari12+

Nuotrauka
Nuotraukos nustatymaiSaturation,brightness,contrast,sharpness,adjustable by client software or web browser
Diena/Naktis režimasDay,Night,Auto,Schedule,Alarm Trigger (-S)
Wide Dynamic Range (WDR)120 dB
Nuotraukų pagražinimasBLC,HLC,3D DNR,defog
Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in eMMC storage, up to 8 GB for people counting data
Įmontuotas mikrofonasYes
Garsas
-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
-S: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija-S: 1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
RS-485-S: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Funkcijos
Pagrindinės funckcijosMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

Išmaniosios funkcijos
People Counting
Counts people entering and exiting separately
Supports real-time uploading and uploading by statistic cycle
Sends email reports on daily, weekly, monthly or annually basis
Supports target filtering by height

Pagrindinis
Sistemos parametrai
12 VDC ± 20%, 0.58 A, max. 7.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.24 A to 0.15 A, max. 8.5 W
MedžiagaFront cover: plastic, camera body: metal
Dydis168 mm × 61 mm × 41 mm (6.6" × 2.4" × 1.6")
Pakuotės dydis235 mm × 120 mm × 125 mm (9.2" × 4.7" × 4.9")
SvorisApprox. 435 g (1 lb.)
Svoris su įpakavimuApprox. 835 g (1.6 lb.)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 144 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba
32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Pagrindinės funkcijosHeartbeat,anti-flicker,mirror,password protection
