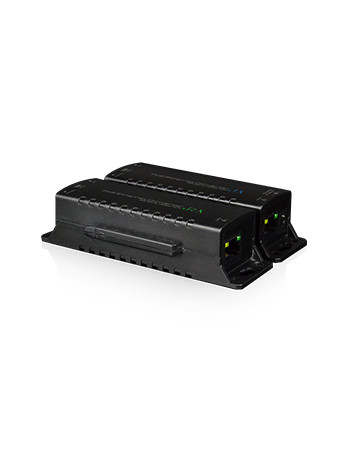

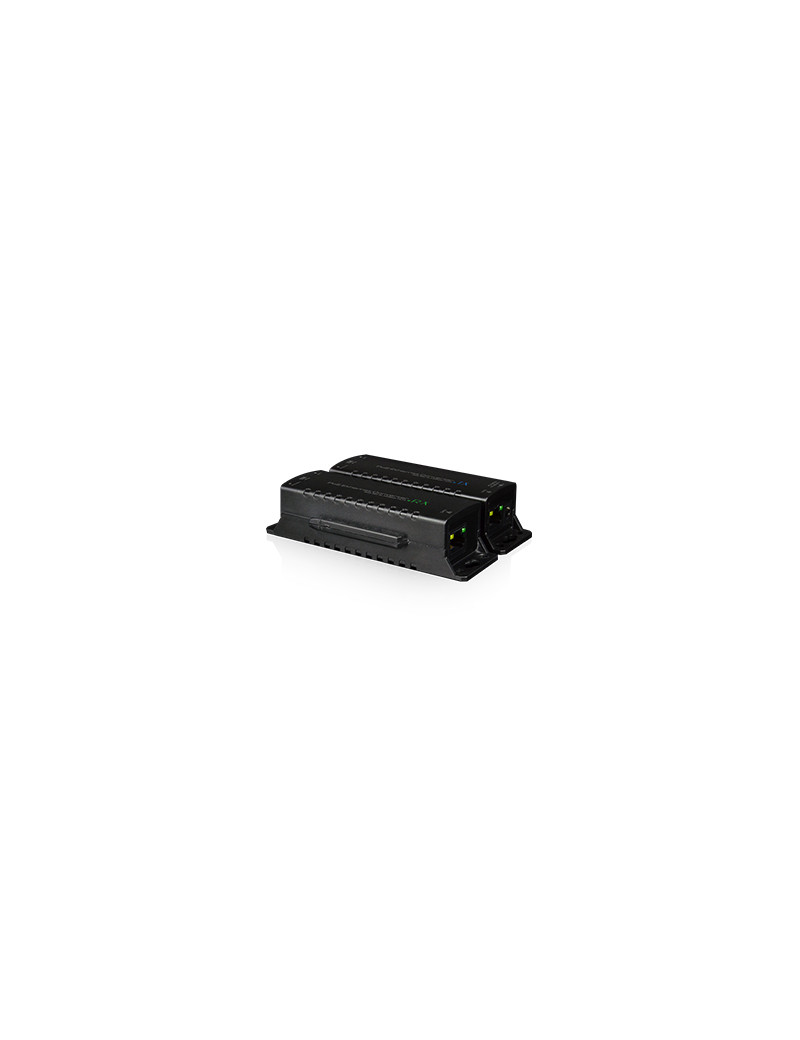

UTEPO UTP3-VMC01-POE

Model

UTP3-VMC01-PoE(SV Unit)

UTP3-VMC01-PoE(IPC Unit)

Network port

1* 10/100Base-Tx

1* 10/100Base-Tx

Fiber Port

1*9, SC

1*9, SC

wavelength

T1550/R1310nm

T1310/R1550nm

Transmission distance

20km

Network standard

IEEE802.3 、IEEE802.3u

 Delay

＜20us

PoE Standard

802.3af/at (PD)

802.3af/at (PSE)

PsE Type

End-span

Power Pin Assignment

1/2(+),3/6(-)

PoE Power Output

-

≤30W

Lightning protection

2KV Execute：IEC61000-4-5

ESD

6KV Contact discharge

8KV Air discharge

Execute：IEC61000-4-2

Power Supply

PoE

DC 48-57V

Power Dissipation

＜5W

Work temperature

-10℃~55℃

Storage temperature

-40℃~85℃

Humidity(Non-condensin)

5%-95%

Dimension（L×W×H）

113mm×45.5mm×29mm

Weight

58g

EMC/Safety

CE、FCC、ROHS
